My trips are always split
You have extremely low report.trip.minDuration value. You also have some hallucinated parameters. You should double-check your configuration against the official documentation.
Hi,
You're right, I modified my configuration and had to use a computed attribute for Ignition because it was working poorly with my HEV vehicle.

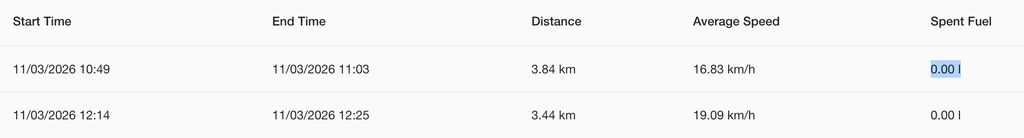

Now my trips are perfectly structured:
But fuel consumption (in liters) is still empty in the trip list :/ However, I still have the fuel value (in deciliters, io390) in all positions, even when the car is parked and switched off.
Since I entered my tracker model (FMB003) in Settings > Device, fuel consumption per trip no longer works... Previously, I had set report.trip.selectFuel=last and a computed attribute based on fuel consumption using this expression:
io390 ? (io390 / 10.0) : (lastFuel > 0 ? lastFuel : 0)
For testing purposes, I removed my computed fuel attribute... and there's no change (fuel consumption is always recorded in the positions, but not in the trips). How can I get the actual fuel consumption per trip? Even if it's only 0.1L...

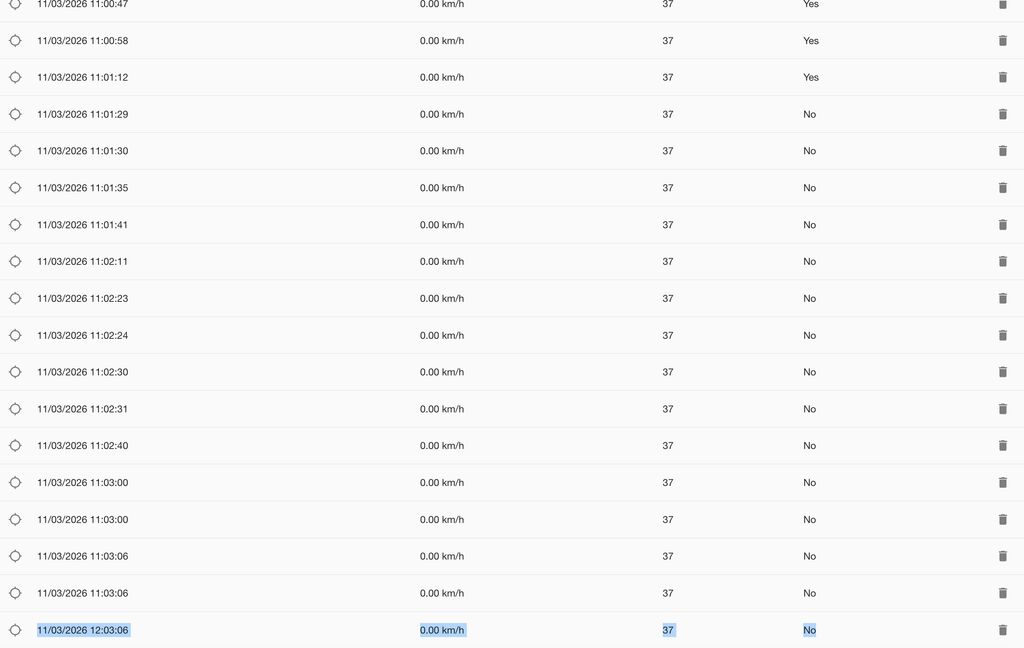

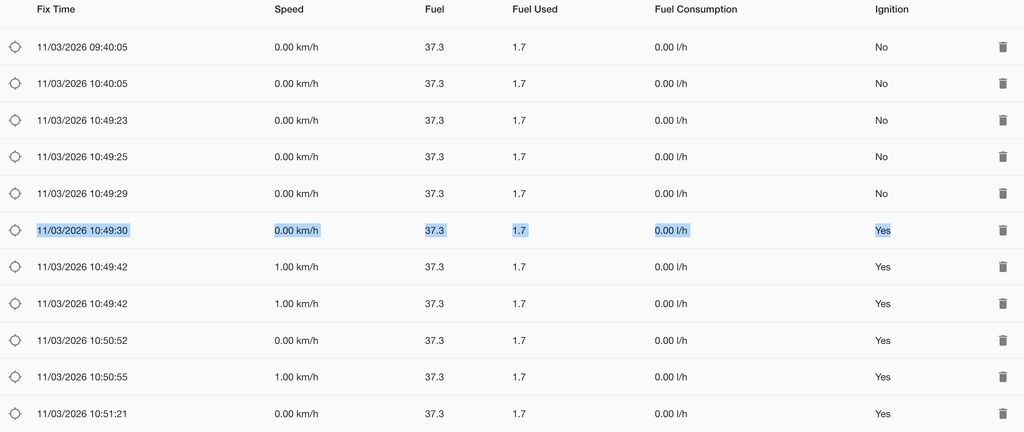

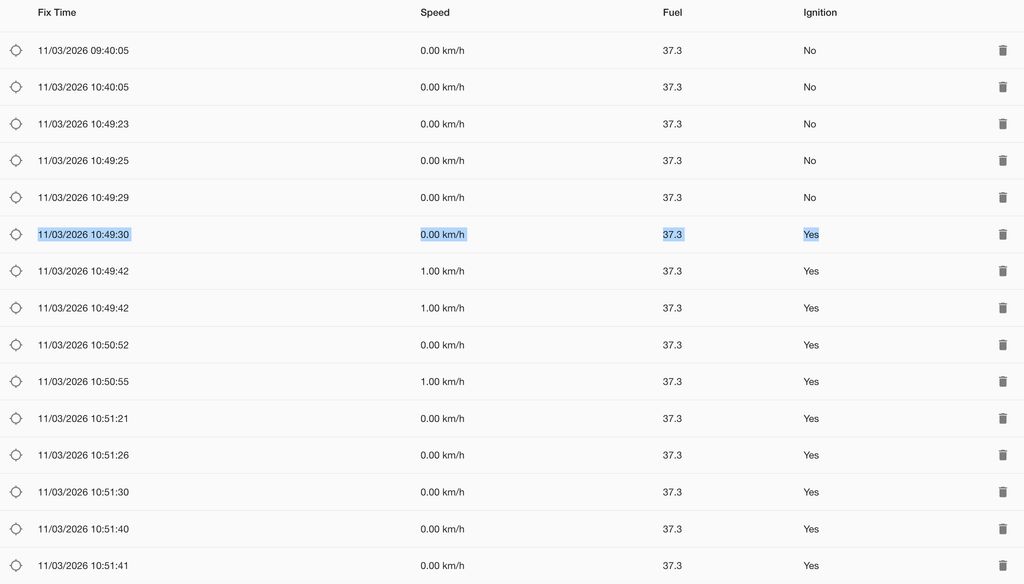

Look at the list of my positions at the beginning and end of my first trip of the day:
My configuration file:
<entry key='filter.enable'>true</entry>
<entry key='filter.static'>false</entry>
<entry key='filter.invalid'>false</entry>
<entry key='filter.accuracy'>50</entry>
<entry key='filter.maxSpeed'>250</entry>
<entry key='event.motion.speedThreshold'>2.5</entry>
<entry key='report.trip.distancePrecision'>2</entry>
<entry key='report.trip.fuelPrecision'>2</entry>
<entry key='report.trip.newLogic'>false</entry>
<entry key='report.trip.useIgnition'>true</entry>
<entry key='report.trip.minimalStopDuration'>600</entry>
<entry key='report.trip.minimalTripDistance'>500</entry>
<entry key='report.trip.minimalTripDuration'>300</entry>
<entry key='report.trip.selectFuel'>last</entry>
<entry key='report.trip.fuelDropThreshold'>0.01</entry>
<entry key='report.trip.minimalTripFuel'>0.01</entry>
<entry key='server.timeout'>300</entry>
<entry key='status.timeout'>300</entry>
<entry key='processing.copyAttributes'>fuel,power,batteryLevel,hybridBatteryLevel</entry>
<entry key='processing.computedAttributes.deviceAttributes'>true</entry>
<entry key='processing.computedAttributes.lastAttributes'>true</entry>
Thanks in advance for your help, because I'm completely stuck.
Do you have any other fuel attributes? Like fuelUsed?
Yes, I do have the fuelUsed attribute, but it's been stuck at 1.7 for several days. I don't see the point compared to fuel, which is much more interesting and relevant to me.
The point is that Traccar will prefer that attribute if it's available. That explains exactly what you see.
Ah ok, is it impossible to change the priority order (used fuel instead of fuelUsed for the calculation)? Or do I need to disable sending the fuelUsed attribute from Teltonika Configurator? Or should I set a null value for fuelUsed in Traccar with a computed attribute?
Thanks anyway.
Not possible to change priority, but either disabling on device or clearing with computed attributes should work.
Okay, thank you very much for your help.
Will it work if I put this in the configuration?
<entry key='processing.ignoreAttributes'>fuelUsed</entry>
My two AIs made a mistake, sorry... processing.ignoreAttributes doesn't exist.
If I create a computed attribute fuelUsed and set it to null, will that work?
Yes. And please double check information before asking in the future.

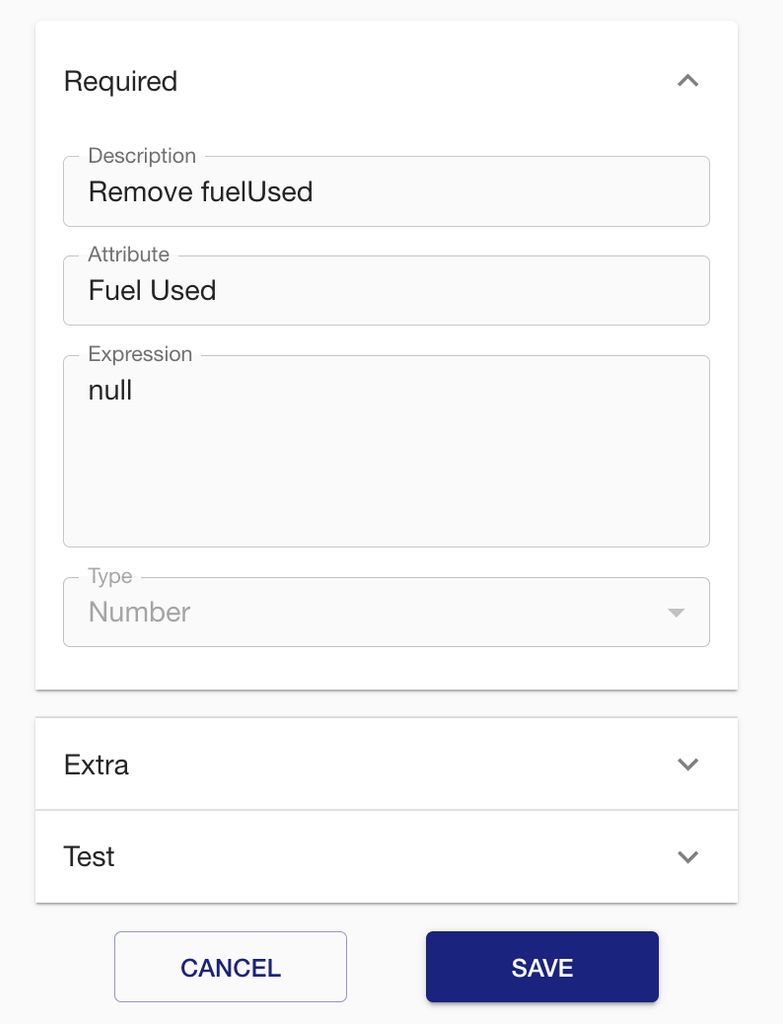

Yes, I'll be careful. Am I doing this correctly with the computed attribute?
Looks correct.
It works, I finally have the fuel consumption per trip. So thank you very much ;)
I'm trying to calculate/display the average fuel consumption per trip (in liters per 100 km) and the cost of the trip in fuel in EUR. I can't seem to do this with a computed attribute. What's the best method, as I only have the "fuel" field available?
Hi,
With my Teltonika FMB003 tracker in GNSS Sleep mode and Traccar v6.12.2 on Docker, my trips are always split.
Yesterday I had the following settings:

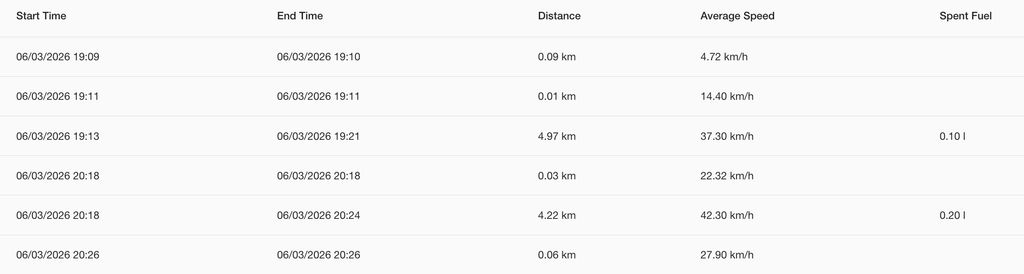

Trips 1, 2, and 3 from 7:09 PM to 7:21 PM are the same (but split into 3), then I turned off the engine. The same applies to trips 3, 4, and 5 from 8:18 PM to 8:26 PM
I changed 3 settings because I never got the end of my trip (Traccar indicated that the engine was still running even though the car was parked and therefore switched off) and to try to have a complete trip (not split into 2 or 5 parts) :

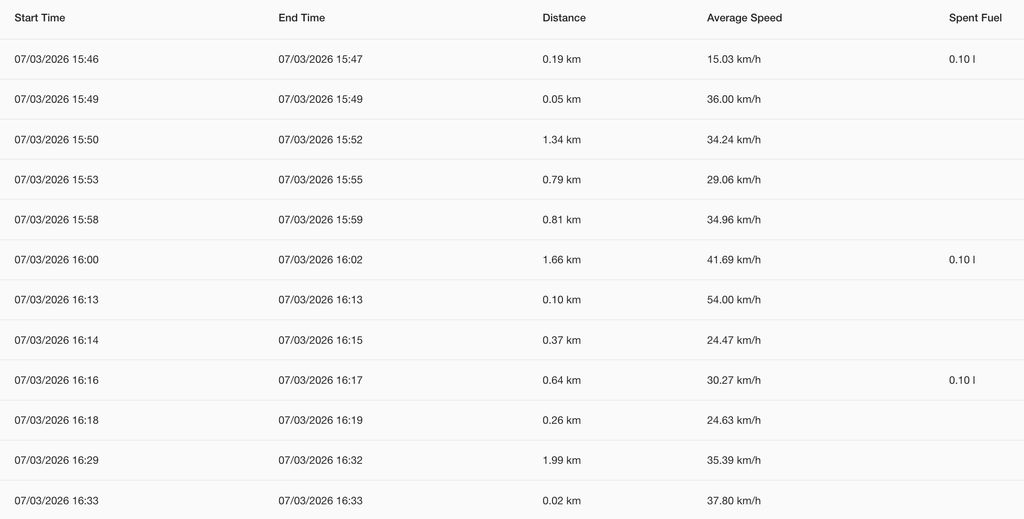

And look at my trips today. It's even worse. Even though I now have the car's actual status (especially when the engine is off).
I'd like Traccar to record trips based solely on the ignition field. I start my car, drive 1 or 10 km, turn off the ignition: trip recorded.
How can I do this? I've been trying things for days, without success, unfortunately...
Thanks for your help.
